• UAV engine
  • Model Engine
  • DLA180i2 with starter and AlternatorCarburetor)  Pusher Propeller32*10

    (Temperature 19Humidity53%)

    RPM

    2000

    2500

    3000

    3500

    4000

    4500

    5000

    5500

    6000

    6400

    Fuel consumption /ml

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    Time/ s

    130

    115

    72

    54

    39

    35

    28

    27

    26

    20

    Fuel Consumption L/h

    1.38

    1.57

    2.50

    3.33

    4.62

    5.14

    6.43

    6.67

    6.92

    9.00

    Pulling Force/ KG

    4

    6.7

    9.2

    12.7

    15.3

    20.6

    26.3

    31.2

    35.2

    36

    Torque  N.m

    2

    2.4

    3.1

    4.3

    5.5

    7.9

    9.8

    11.7

    14.7

    24

    Engine power /KW

    0.37

    0.71

    1

    1.8

    2.2

    3.8

    5.3

    6.6

    9.2

    15.8

    *** The data is just of a random engine we test, which is for reference only.  In actual use, the data will fluctuate due to the influence of environmental temperature, altitude, carburetor/electric injection adjustment method and even the different brand propellers. Please be noted.


  • Exhaust amount

    64cc

    Output

    7HP

    Cylinder Bore/ Stroke

    37MM/30MM

    speed range

    1600-7000 RPM

    Pulling force

    16KG/1000 Meter altitude

    Cylinder arrangement

    twin in line

    Fuel

    Gasoline + 2T synthetic oil

    Lubrication Ratio

    25:1~30: 1(trial run)
    40: 1~50:1(normal flying)   92# 93# gasoline  2T synthetic oil

    Compression Ratio

    7.6:1

    Propeller Recommended

    22*10,23*8  23*10 , 22*10 recommended

    Spark Plug

    DLA CM6,Iridium

    Voltage

    6.6v-8.4v,  2 LiPo batteries  recommended.

    Weight

    Main engine: 2200g Exhaust pipe: 129  Ignition: 133*2g    standoffs: 27*4g

    Customization

    According to Customer’s  need and specifications

    Others



PRODUCT DISPLAY

UAV (Unmanned Aerial Vehicle) engines.

LATEST AND BEST ENGINE
Shandong Feiao Aircraft Engine Co., Ltd specializes in research and development, manufacturing of UAV (Unmanned Aerial Vehicle) engines.

Shandong Feiao Aircraft Engine Co., Ltd specializes in research and development, manufacturing of UAV (Unmanned Aerial Vehicle) engines. With more than 60 employees, our Company engaged in development, manufacturing of UAV engine for about 15 years, we achieved initial success in 2015 and developed new program of small aero-engine in 2016, which made a great leap in Product quality and obtained 9 patents, so we established a new research and development base in Rizhao City, Shandong province, China in 2017, named Shandong Feiao Aircraft Engine Co., Ltd.

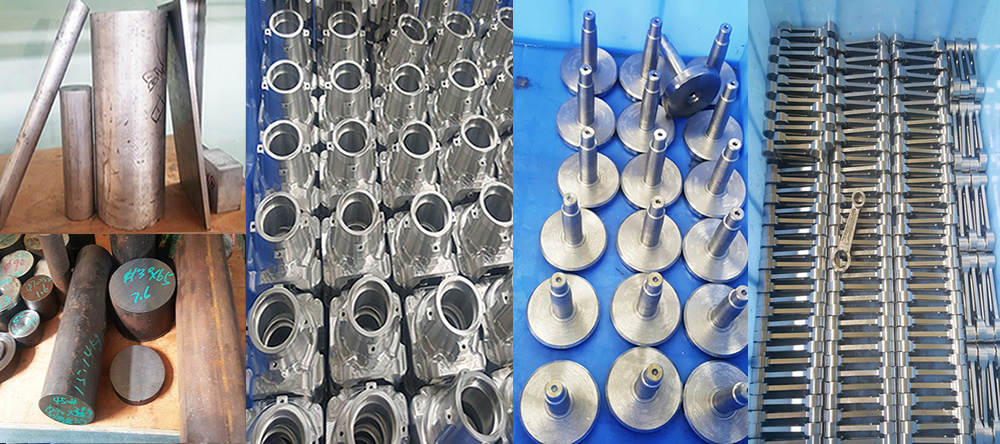

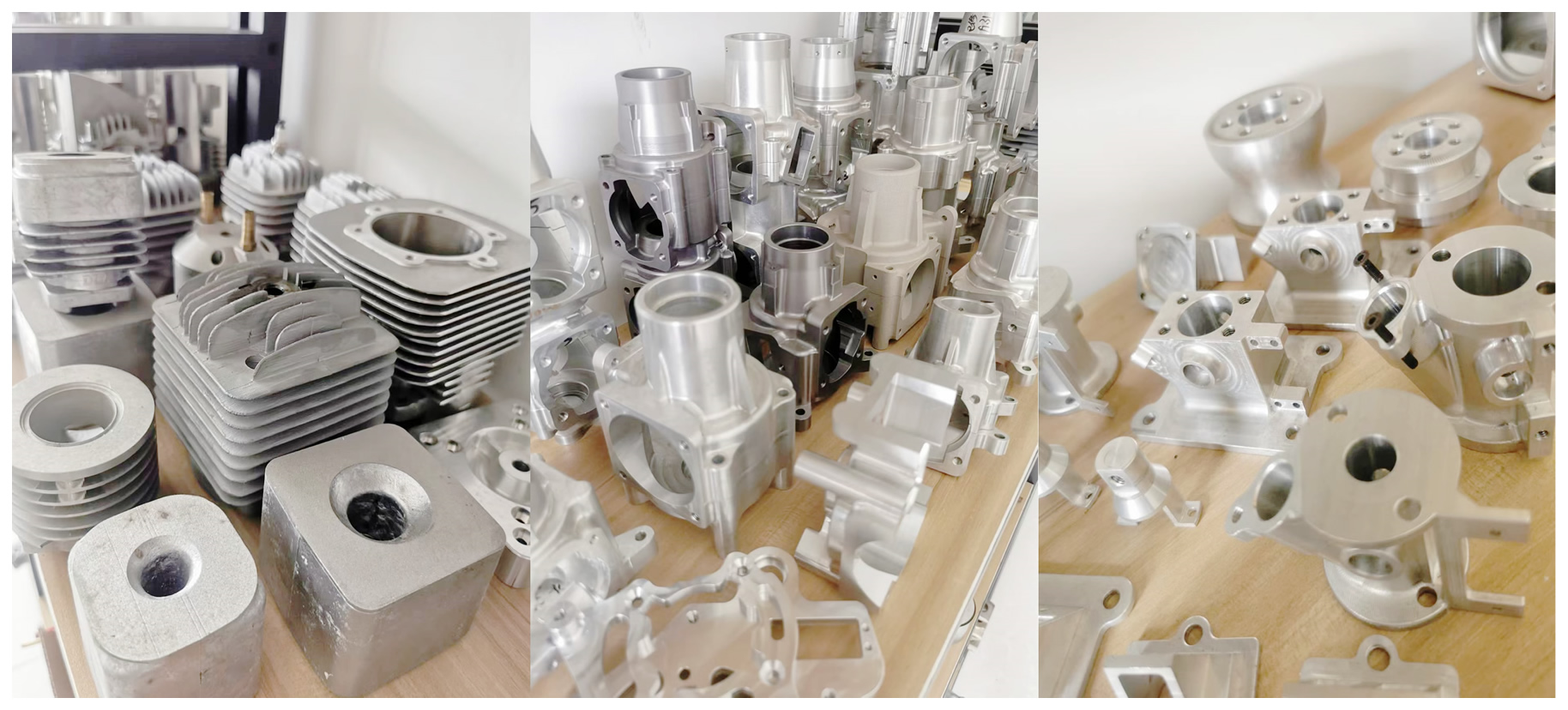

All types of engines are all independently designed, researched, and developed by our professional technical team, and our Company also is the first domestic plant to grasp independent technology from material processing treatment, parts thermal processing treatment to whole assembly and testing. And we also accept the customized business from client’s special engine specifications and different needs to provide professional customized engine business.


80 percents of our Products were sold to UAV manufacturers in Civilian fields. Engines were also exported to many overseas markets, like USA, Germany, Brazil, South Africa..., and got good reputations in the world. Our twin-cylinder wind-cooling engine had good performance in Chinese Antarctic Expedition for more than one year and completed expedition task successfully. In 2015, our engine was used in the Germany Flying Games and ranked top there.


TO TEST THE ENGINE UNDER THE TEMPERATURE -25 DEGREE CENTIGRADE
TO TEST THE ENGINE UNDER THE TEMPERATURE -25 DEGREE CENTIGRADE

Company Dynamic

NEWS

About us

Established in January, 2017 , Shandong Feiao Aircraft Engine Co., Ltd specializes in research and development, manufacturing of UAV (Unmanned Aerial Vehicle) engines. With more than 60 employees, our company engaged in development, manufacturing of UAV engine for about 15 years, we achieved initial success in 2015 and developed new program of small aero-engine in 2016, which made a great leap in product quality and obtained 9 patents, so we established a new research and development base in Rizhao City, Shandong province, China in 2017, named Shandong Feiao Aircraft Engine Co., Ltd.

Our company has more than 20 kinds of products. According to the cylinder arrangement, it can be divided into single series, twin series, Cylinder inline series, Four-Cylinders series, Electric-starting engine series. According to the cooling method, it can be divided into Wind-cooling and Wind-cooling engine. They can be widely used in different air-crafts, like helicopter UAV, fix-wing UAV, rotor UAV, ect. Among them, the cylinder inline engine series, water-cooling engine series, Electric-starting Engine series are our competitive product in the market, and we developed the miniaturization and light water-cooling engine, as well as cylinder inline engine and small  engine series with integrated electric-starter and power-generator together.

80 percents of our products were sold to UAV manufacturers in Civilian fields. Engines were also exported to many overseas markets, like USA, Germany, Brazil, South Africa, and got good reputations in the world. Our twin-cylinder wind-cooling engine had good performance in Chinese Antarctic Expedition for more than one year and completed expedition task successfully. In 2015, our engine was used in the Germany Flying Games and ranked top there.
